Automated Thermal Desorber AutoTDS-V

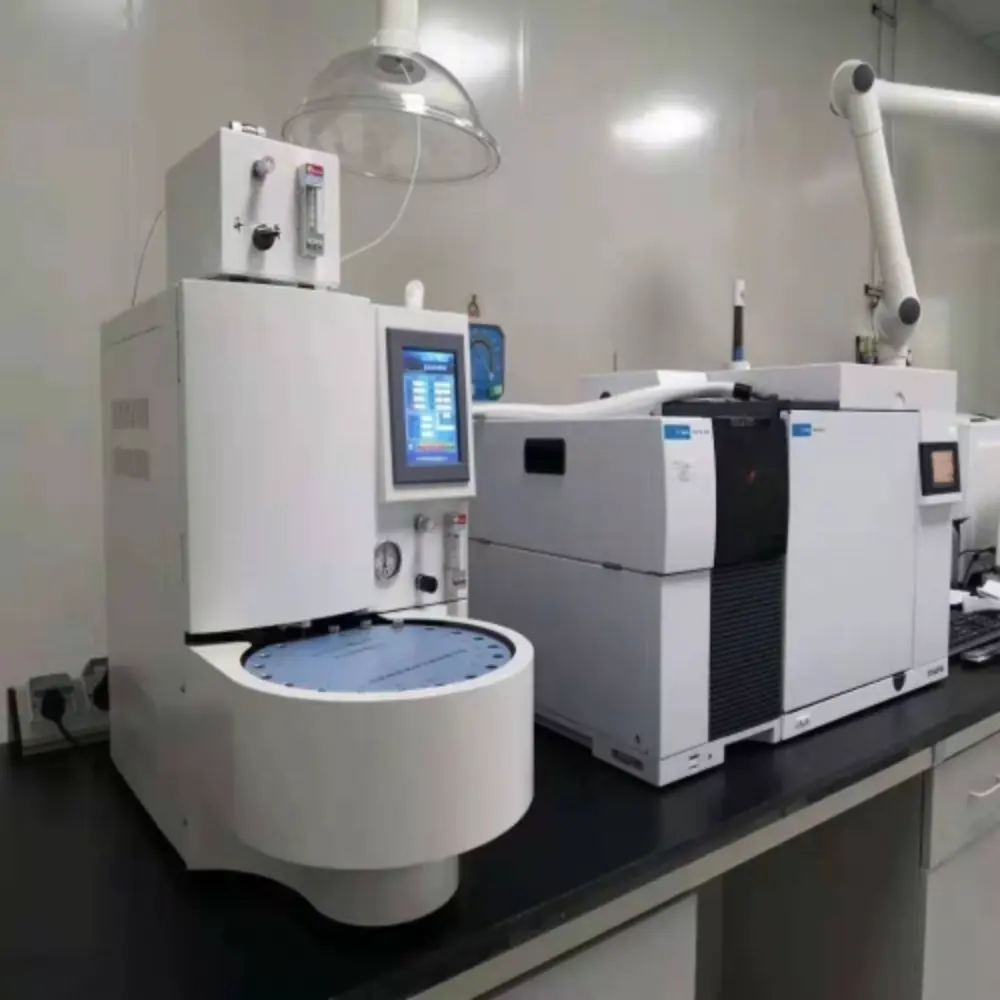

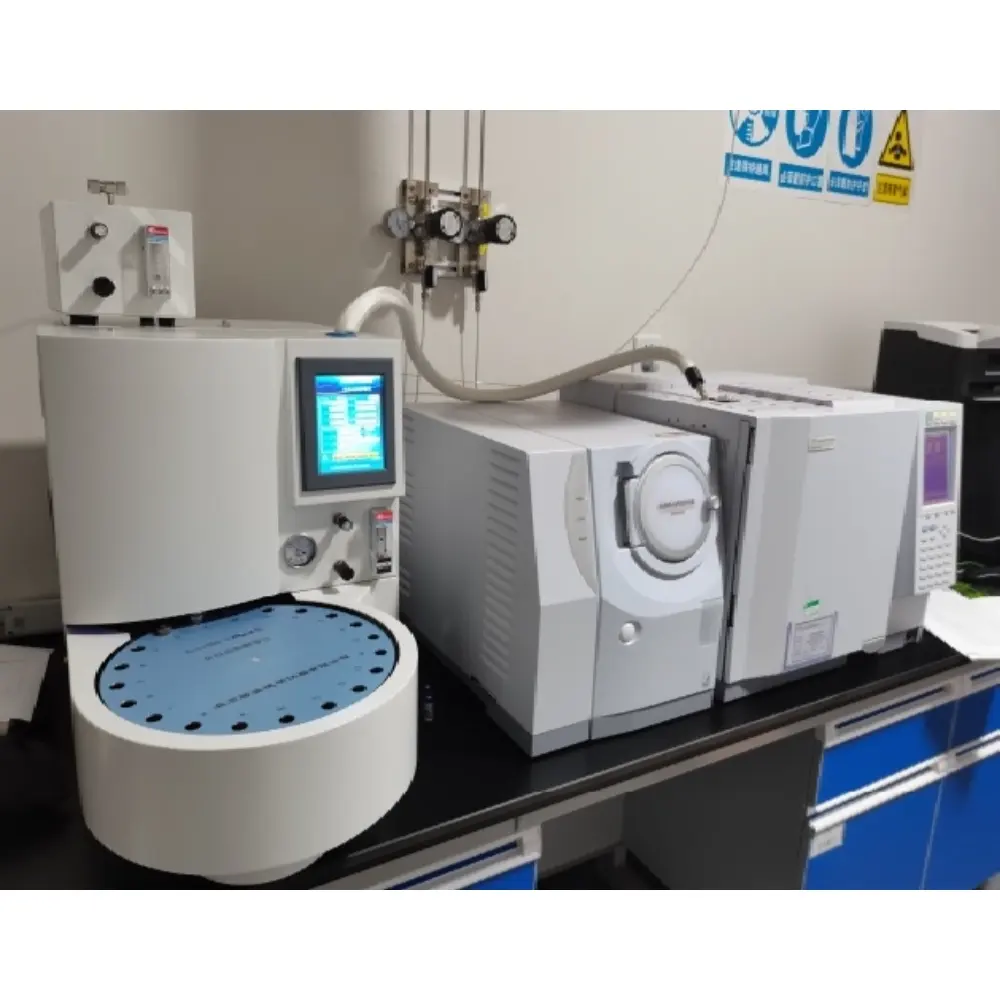

The AutoTDS-V is a high-performance, fully automated thermal desorption sample preparation system engineered specifically for environmental air monitoring and indoor air quality (IAQ) analysis. Seamlessly interfacing with mainstream GC and GC-MS instruments, the system provides automated sequence handling for up to 20 sample tubes (configurable for 10/20/40/50 positions). Equipped with optional ambient or low-temperature secondary refocusing traps, the AutoTDS-V delivers maximum recovery of volatile organic compounds (VOCs), sharp chromatographic peaks, and exceptional measurement repeatability.
Features:
Universal GC/GC-MS Integration
Fully Automated Workflow
Zero-Cold-Spot Heated Path
Automated Leak Checking
Inquiry Now WhatsApp

Introduction

Parameters

Key Features

  • Universal GC/GC-MS Integration: Standardized hardware interfaces connect with all major analytical instruments, featuring dual-channel sync output signals to automatically initiate data acquisition.
  • Fully Automated Workflow: Software-driven sequence control allows “walk-away” operation. A large color touchscreen displays real-time temperature curves and system status throughout every run.
  • Advanced Cold-Trap Refocusing: Combines Peltier (semiconductor) thermoelectric cooling with forced air cooling, paired with direct-resistance rapid heating (>3000 °C/min) for high enrichment efficiency and narrow peak widths.
  • Zero-Cold-Spot Heated Path: Independently heated 6-port valve and transfer lines prevent cold spots, eliminating sample condensation, carryover, and memory effects.
  • Automated Leak Checking: Performs an automated seal test on each sample tube prior to analysis, protecting valuable samples and ensuring data validity.
  • Flexible Modular Options: Supports optional ambient or cryogenic secondary desorption modules to handle both trace-level and high-concentration VOC samples.

Applications & Regulatory Compliance

  • Environmental Air Monitoring: Complies with HJ 644-2013 (VOC determination via sorbent tube sampling and TD-GC/MS) and HJ 583-2010 (Solid Adsorption/Thermal Desorption GC method).
  • Indoor Air Quality (IAQ): Fully compliant with GB/T 18883-2022 (Indoor Air Quality Standard) and GB 50325-2020 (Code for Indoor Environmental Pollution Control of Civil Building Engineering).
  • Automotive Cabin Testing: Complies with HJ/T 400-2007 (Determination of VOCs and carbonyl compounds in vehicles).

Technical Specifications

Parameter Specification
Sample Capacity 20 positions (Standard; 10/20/40/50 configurable)
Primary Desorption Temp. 50 °C – 400 °C (Control accuracy: ±1 °C)
Secondary Desorption Temp. 150 °C – 400 °C (1 °C increments; Heating rate: >3000 °C/min)
Cold Trap Temp. Range -30 °C to Ambient (at 20 °C ambient temp; Optional)
Heated Line Temp. 50 °C – 220 °C (Control accuracy: ±1 °C)
Purge Flow Rate 10 – 100 mL/min
Timing Range & Error 1 sec – 59 min 59 sec (Timing error <0.1%)
Pneumatic Pressure Rating >0.4 MPa (>4 kg/cm²)
Sync Signal Output 2-channel relay pulse (1–2 seconds)
Power Supply & Rating 220 VAC ± 22 VAC, 50 Hz ± 0.5 Hz; Power < 800 VA
Dimensions & Weight 500 mm (H) × 400 mm (W) × 700 mm (L); Approx. 35 kg



Operating Requirements

Parameter Requirement
Operating Temperature +5 °C to +35 °C
Relative Humidity ≤ 85% (non-condensing)
Backflush Carrier Gas Pressure ≤ 0.4 MPa
Power Supply 220 VAC ± 22 VAC, 50 Hz ± 0.5 Hz
